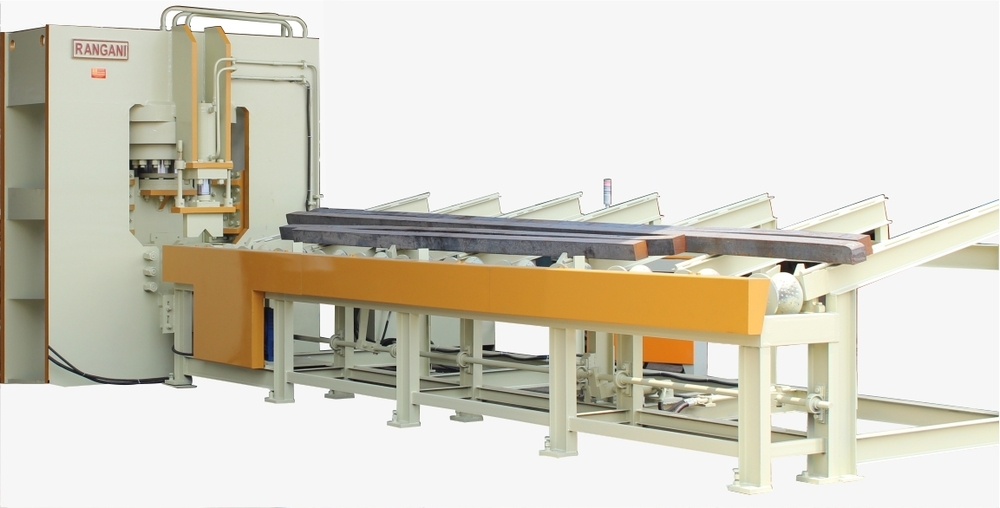

Continous Cold Shearing Machine

Get a Price/Quote

MOQ : 1 Piece

Continous Cold Shearing Machine Specification

Noise Level
85 dB

Cooling System
Water Cooled

Features
Heavy duty structure, Low maintenance, High precision, User friendly interface

Frame Type
Welded Frame

Accuracy
0.5 mm

Production Capacity
4-8 Ton/Hour

Power Rating
11 kW

Lubricating System
Centralized Automatic

Motor Power
11 kW

Frequency
50 Hz

Model No
CCSM-60T

Operating Temperature
5C - 40C

Voltage
415 V

Machine Type
Cold Shearing

Drive
Gear Drive

Connectivity Options
Local Control Panel

Product Type
Continuous Cold Shearing Machine

Technology
Cold Shearing

Power Source
Electric Motor

Operating Type
Automatic

Power
11 kW

Pressure
60 Tons

Surface Treatment
Painted/Coated

Dimension (L*W*H)
3200 x 1200 x 1300 mm

Weight (kg)
2600 kg

Color
Blue

Usage & Applications
Shearing of bar, square, and structural steel material

Emergency Stop
Yes

Finish
Corrosion Resistant

Shear Type
Cold Mechanical Shear

Hydraulic/Electric
Electric

Safety Features
Overload protection, Emergency stop, Interlocked guard covers

Cutting Range
12 mm - 32 mm (bar diameter)

Working Speed
20-25 Cuts/Minute

Operator Interface
Digital Touch Panel

Blade Material
High Carbon Alloy Steel

Maintenance
Low maintenance with easy-access parts

Power Consumption
Approx. 10-12 kW/h

Cycle Time
2.5 Seconds

Number of Blades
Two

Continous Cold Shearing Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
7 Days

About Continous Cold Shearing Machine

Tagline: Cut Billets at Unmatched Speed, Zero Heat, Zero Waste.

High-Speed Automation
Cold Cutting Technology
High-Volume Operations
Suitable for All shapes of billets (Round / Square)

Specifications Table

Max Billet Size	Stroke / min	Motor Power
60 x 60 mm	6	30 HP
100 x 100 mm	3	40 Hp
130 x 130 mm	2	50
150 x 150 mm	2	60
200 x 200 mm	1	75
Custom Size		50+

Material Suitable

Mild Steel
Carbon steel
Alloy Steel
Stainless Steel
Custom Profiles: Round, square.

Benefits

Boost Productivity: Cut 5x faster than traditional bandsaws with no manual intervention.
Maximize Material Yield: Near-zero Cut loss reduces waste and material costs.
Labor Savings: Fully automated workflow slashes staffing needs by up to 70%.

Industries Served

Forging Plants
Metal Billet Plants

Precision Engineering for Demanding Shearing Tasks

The CCSM-60T cold shearing machine offers high-performance cutting with a powerful electric gear drive and centralized automatic lubrication for longevity and reduced wear. Its welded, heavy-duty frame and corrosion-resistant finish withstand rigorous usage. The high-carbon alloy blades guarantee crisp, repeatable cuts, accommodating various sizes of steel bars and structural materials seamlessly.

Enhanced Safety and User Control

Operator safety is a priority, with built-in overload protection, interlocked guard covers, and an easy-to-access emergency stop. The digital touch panel streamlines operation, enabling precise adjustments, real-time monitoring, and seamless workflow management. Maintenance is simplified with easy-access parts and intelligent lubrication systems, supporting smooth, uninterrupted operation.

FAQ's of Continous Cold Shearing Machine:

Q: How does the CCSM-60T cold shearing machine operate?

A: The CCSM-60T utilizes an electric gear drive to perform automatic cold shearing of steel bars and structural materials. The operator manages the process through a digital touch panel, which sets parameters and monitors real-time operations. The machine executes 20-25 cuts per minute with consistent accuracy.

Q: What maintenance is required for this cold shearing machine?

A: This machine requires minimal maintenance due to its centralized automatic lubrication system and accessible design for essential components. Regular checks of the lubrication and cooling systems, as well as occasional inspection of the high-carbon alloy blades, are recommended for optimal performance.

Q: When should the blades be replaced or serviced?

A: Blades should be inspected regularly for wear, as their lifespan depends on production volume and the materials cut. Service or replacement is typically needed when cuts lose precision or visible wear is detected. The easy-access design allows for swift blade changes to minimize downtime.

Q: Where can this continuous cold shearing machine be installed?

A: The CCSM-60T is suitable for steel processing plants, fabrication workshops, and industrial facilities requiring precise shearing of bars and structural materials. The machine's footprint of 3200 x 1200 x 1300 mm and 415V electrical requirement make it appropriate for medium to large-scale operations.

Q: What is the shearing process and how accurate is it?

A: The process involves clamping the steel bar or section in position, followed by cutting it with high-carbon alloy steel blades using 60 tons of pressure. The machine ensures high precision, maintaining cutting accuracy within 0.5 mm throughout its working range.

Q: How does the machine enhance operator safety?

A: The CCSM-60T includes several safety features: overload protection, an emergency stop button, interlocked guard covers, and a user-friendly control interface. These collectively help prevent accidents and ensure safe operation during both production and maintenance activities.

Q: What are the benefits of using this cold shearing machine for steel processing?

A: Users benefit from high throughput (4-8 tons per hour), minimal maintenance demands, superior cut accuracy, and a robust, corrosion-resistant build. The digital interface and safety systems further enhance productivity and operator confidence, making it an ideal solution for demanding shearing applications.
